Random Short Take #11

Here are a few links to some random news items and other content that I found interesting. You might find it interesting too. Maybe. Happy New Year too. I hope everyone’s feeling fresh and ready to tackle 2019.

  • I’m catching up with the good folks from Scale Computing in the next little while, but in the meantime, here’s what they got up to last year.
  • I’m a fan of the fruit company nowadays, but if I had to build a PC, this would be it (hat tip to Stephen Foskett for the link).

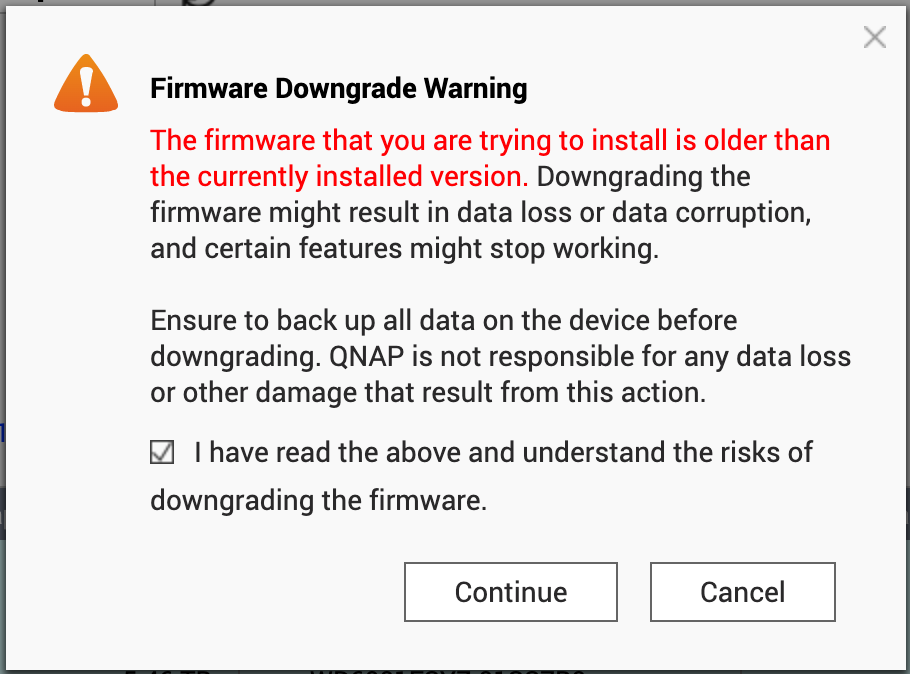

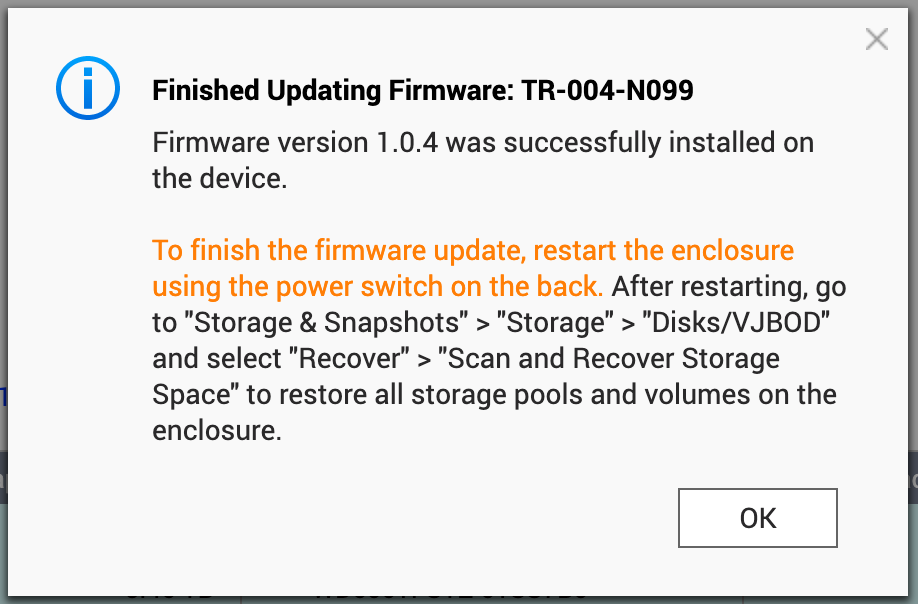

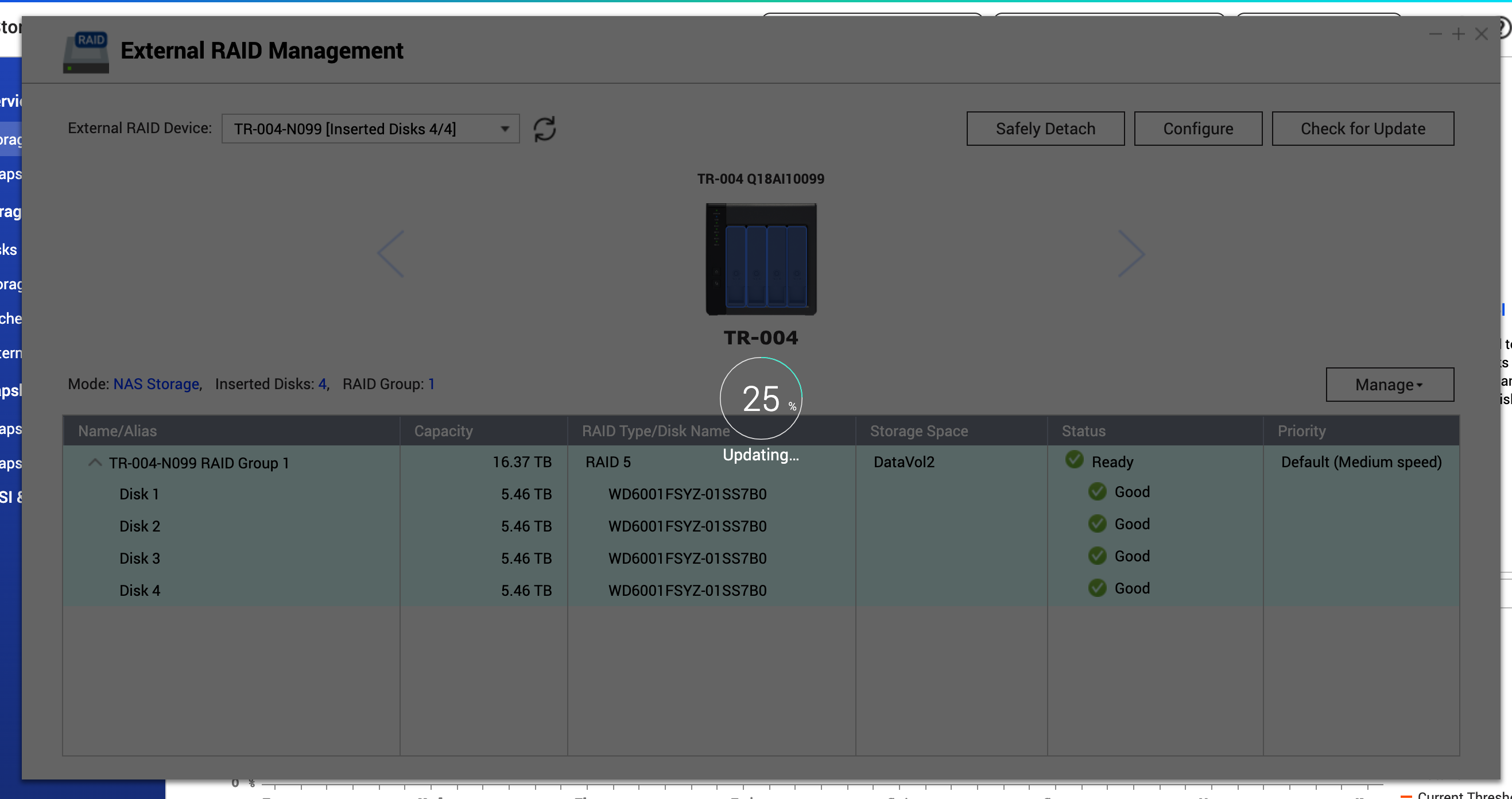

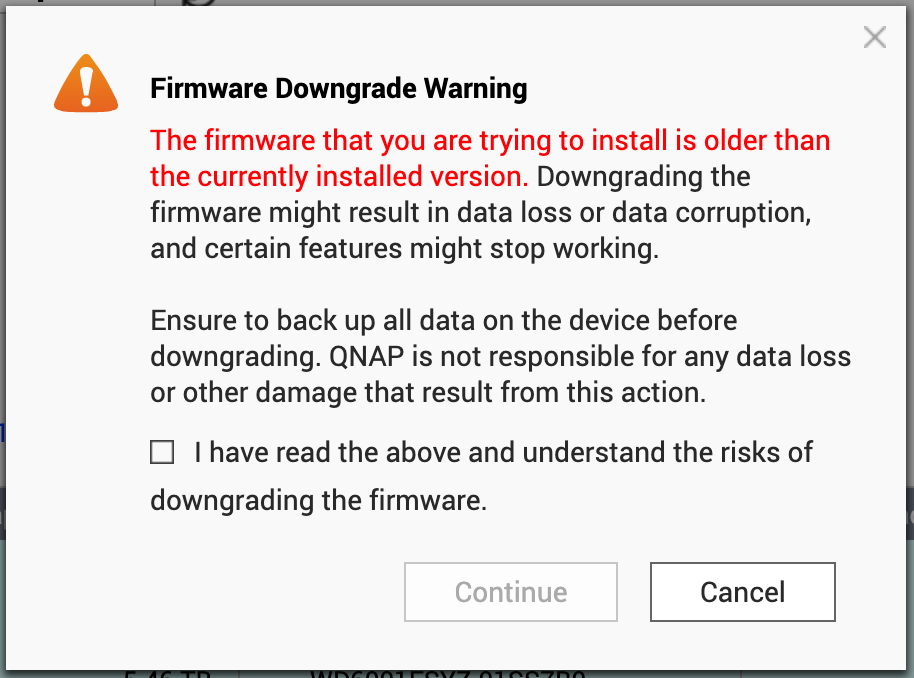

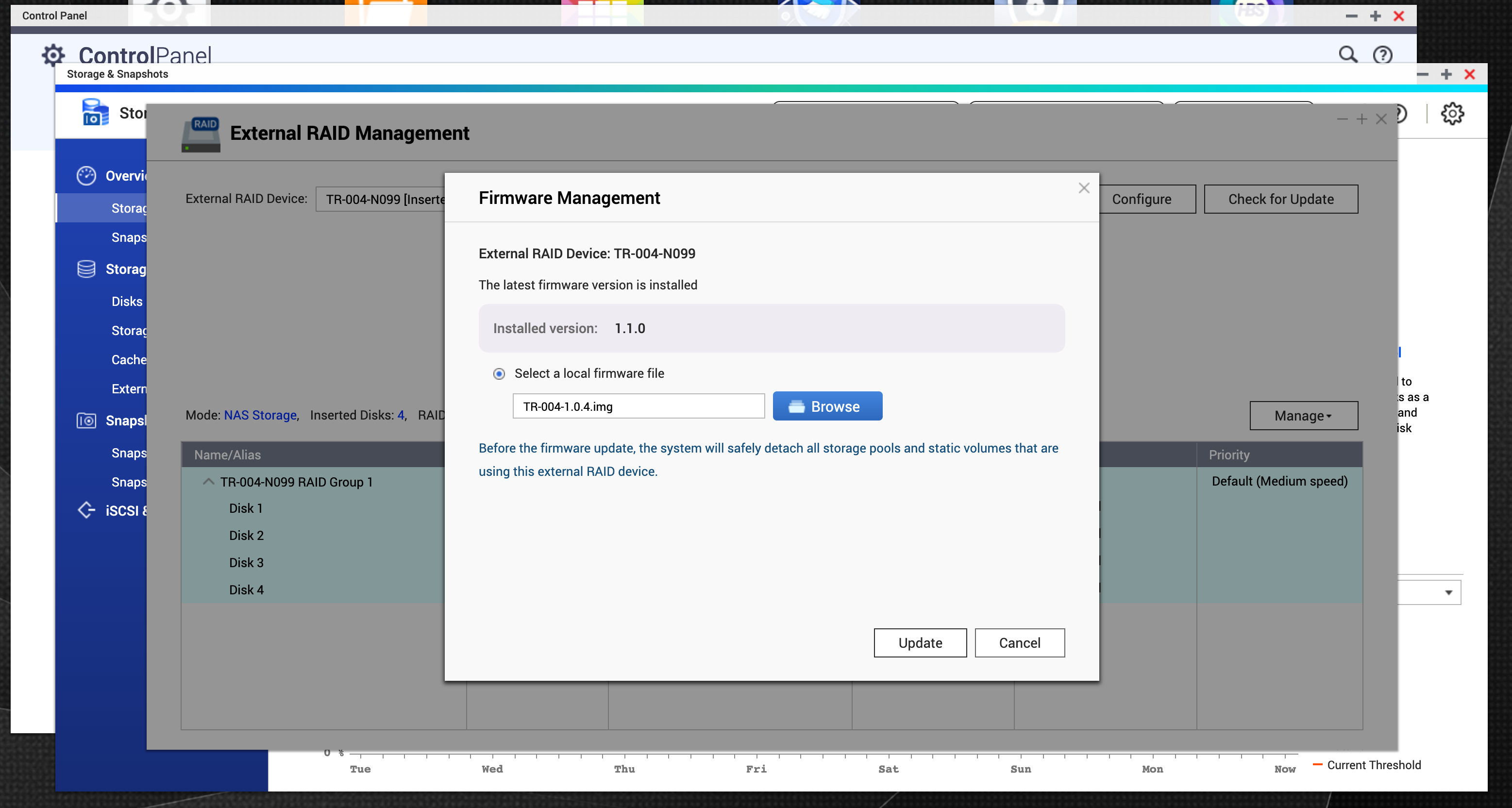

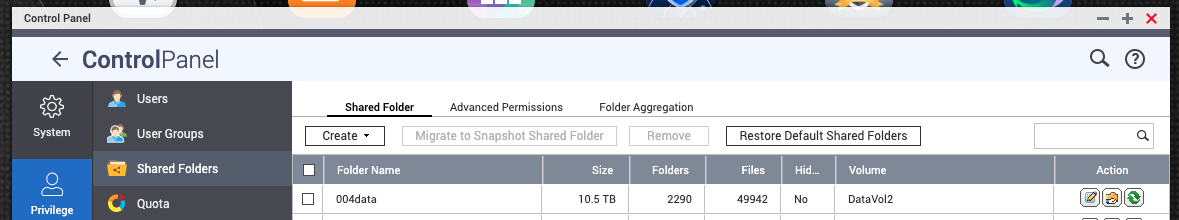

  • QNAP announced the TR-004 over the weekend and I had one delivered on Tuesday. It’s unusual that I have cutting edge consumer hardware in my house, so I’ll be interested to see how it goes.
  • It’s not too late to register for Cohesity’s upcoming Helios webinar. I’m looking forward to running through some demos with Jon Hildebrand and talking about how Helios helps me manage my Cohesity environment on a daily basis.
  • Chris Evans has published NVMe in the Data Centre 2.0 and I recommend checking it out.
  • I went through a basketball card phase in my teens. This article sums up my somewhat confused feelings about the card market (or lack thereof).
  • Elastifile Cloud File System is now available on the AWS Marketplace – you can read more about that here.
  • WekaIO have posted some impressive numbers over at spec.org if you’re into that kind of thing.
  • Applications are still open for vExpert 2019. If you haven’t already applied, I recommend it. The program is invaluable in terms of vendor and community engagement.





QNAP – Manually Mounting a Belligerent eSATA Drive Filesystem

It seems I’m complaining about my oldest QNAP every other week. Arguably, given the sweat equity invested in these devices, I’d be better off just replacing it. But I persist nonetheless. Recently I had to evacuate the array again and replace a drive. No, I know I shouldn’t have to do that but … look, fine. Anyway, I had used a combination of eSATA docked HDDs, a Windows 7 HTPC and some USB drives (basically whatever had capacity) to copy the data off. When I had the NAS sorted, I started to copy data back. This all went fine until I got to the last SATA drive. I kept getting a message that the filesystem wasn’t recognised. Even though the NAS had created said NTFS filesystem for me. It was a bit weird.

qnap1

The solution, after a bit of searching, was to manually mount the filesystem and copy off the files. Here’s how to do it.

Firstly, you can identify the device via dmesg.

[150521.371058] scsi 2:0:0:0: Direct-Access     Seagate  ST2000DL003-9VT1 CC32 PQ: 0 ANSI: 5
[150521.377213] Check proc_name[ahci].
[150521.389517] sd 2:0:0:0: [sdza] 3907029168 512-byte logical blocks: (2.00 TB/1.81 TiB)
[150521.396630] Check proc_name[ahci].
[150521.403685] sd 2:0:0:0: [sdza] Write Protect is off
[150521.409037] sd 2:0:0:0: [sdza] Mode Sense: 00 3a 00 00
[150521.409217] sd 2:0:0:0: Attached scsi generic sg676 type 0
[150521.415783] sd 2:0:0:0: [sdza] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[150521.448217]  sdza: sdza1 sdza2 sdza3 sdza4
[150521.469368] sd 2:0:0:0: [sdza] Attached SCSI disk

Create a mount point on the NAS to mount the device to.

[~] # cd /mnt
[/mnt] # ls
HDA_ROOT/ HDB_ROOT/ HDC_ROOT/ HDD_ROOT/ HDE_ROOT/ HDF_ROOT/ QUPNP/    config/   ext/
[/mnt] # mkdir tmpmnt

Once that’s done, you can mount the device. In this case I’m using ntfs-3g as I know it’s a NTFS filesystem. If you’re using something else, like ext4, then the mount command will be different.

[/mnt] # ntfs-3g /dev/sdza3 /mnt/tmpmnt/
[/mnt] # cd /mnt/tmpmnt/
[/mnt/tmpmnt] # ls
movies/
[/mnt/tmpmnt] #

And you can then copy the files to where you need them to be. Note that while I said this was a problem with eSATA, it was really a problem with the filesystem, not the transport mechanism, as using USB didn’t work either.



QNAP – Upgrading Firmware via the CLI

For some reason, I keep persisting with my QNAP TS-639 II, despite the fact that every time something goes wrong with it I spend hours trying to revive it. In any case, I recently had an issue with a disk showing SMART warnings. I figured it would be a good idea to replace it before it became a big problem. I had some disks on the shelf from the last upgrade. When I popped one in, however, it sent me this e-mail.

Server Name: qnap639
IP Address: 192.168.0.110
Date/Time: 28/05/2015 06:27:00
Level: Warning
The firmware versions of the system built-in flash (4.1.3 Build 20150408) and the hard drive (4.1.2 Build 20150126) are not consistent. It is recommended to update the firmware again for higher system stability.

Not such a great result. I ignored the warning and manually rebuilt the /dev/md0 device. When I rebooted, however, I still had the warning. And a missing disk from the md0 device (but that’s a story for later). To get around this problem, it is recommended that you reinstall the array firmware via the shell. I took my instructions from here. In short, you copy the image file to a share, copy that to an update directory, run a script, and reboot. It fixed my problem as it relates to that warning, but I’m still having issues getting a drive to join the RAID device. I’m currently clearing the array again and will put in a new drive next week. Here’s what it looks like when you upgrade the firmware this way.

[/etc/config] # cd /
[/] # mkdir /mnt/HDA_ROOT/update
mkdir: Cannot create directory `/mnt/HDA_ROOT/update': File exists
[/] # cd /mnt/HDA_ROOT/update
[/mnt/HDA_ROOT/update] # ls
[/mnt/HDA_ROOT/update] # cd /
[/] # cp /share/Public/TS-639_20150408-4.1.3.img /mnt/HDA_ROOT/update/
[/] # ln -sf /mnt/HDA_ROOT/update /mnt/update
[/] # /etc/init.d/update.sh /mnt/HDA_ROOT/update/TS-639_20150408-4.1.3.img
cksum=238546404
Check RAM space available for FW update: OK.
Using 120-bit encryption - (QNAPNASVERSION4)
len=1048576
model name = TS-639
version = 4.1.3
boot/
bzImage
bzImage.cksum
config/
fw_info
initrd.boot
initrd.boot.cksum
libcrypto.so.1.0.0
libssl.so.1.0.0
qpkg.tar
qpkg.tar.cksum
rootfs2.bz
rootfs2.bz.cksum
rootfs_ext.tgz
rootfs_ext.tgz.cksum
update/
update_img.sh
4.1.3 20150408
OLD MODEL NAME = TS-639
Allow upgrade
Allow upgrade
/mnt/HDA_ROOT/update
1+0 records in
1+0 records out
tune2fs 1.41.4 (27-Jan-2009)
Setting maximal mount count to -1
Setting interval between checks to 0 seconds
Update image using HDD ...
bzImage cksum ... Pass
initrd.boot cksum ... Pass
rootfs2.bz cksum ... Pass
rootfs_ext.tgz cksum ... Pass
rootfs_ext.tgz cksum ... Pass
qpkg.tar cksum ... Pass
Update RFS1...
mke2fs 1.41.4 (27-Jan-2009)
Filesystem label=
OS type: Linux
Block size=1024 (log=0)
Fragment size=1024 (log=0)
13832 inodes, 55296 blocks
0 blocks (0.00%) reserved for the super user
First data block=1
Maximum filesystem blocks=56623104
7 block groups
8192 blocks per group, 8192 fragments per group
1976 inodes per group
Superblock backups stored on blocks:
8193, 24577, 40961
Writing inode tables: done
Writing superblocks and filesystem accounting information: done
This filesystem will be automatically checked every 21 mounts or
180 days, whichever comes first.  Use tune2fs -c or -i to override.
Checking bzImage ... ok
Checking initrd.boot ... ok
Checking rootfs2.bz ... ok
Checking rootfs_ext.tgz ... ok
Update RFS2...
mke2fs 1.41.4 (27-Jan-2009)
Filesystem label=
OS type: Linux
Block size=1024 (log=0)
Fragment size=1024 (log=0)
13832 inodes, 55296 blocks
0 blocks (0.00%) reserved for the super user
First data block=1
Maximum filesystem blocks=56623104
7 block groups
8192 blocks per group, 8192 fragments per group
1976 inodes per group
Superblock backups stored on blocks:
8193, 24577, 40961
Writing inode tables: done
Writing superblocks and filesystem accounting information: done
This filesystem will be automatically checked every 31 mounts or
180 days, whichever comes first.  Use tune2fs -c or -i to override.
1+0 records in
1+0 records out
Update Finished.
Make a Backup
/share/MD0_DATA
qpkg.tar cksum ... Pass
set cksum [238546404]
[/] # reboot
[/] #


QNAP – Add swap to your NAS for large volume fsck activities

That’s right, another heading from the Department of not terribly catchy blog article titles. I’ve been having a mighty terrible time with one of my QNAP arrays lately. After updating to 4.1.2, I’ve been getting some weird symptoms. For example, every time the NAS reboots, the filesystem is marked as unclean. Worse, it mounts as read-only from time to time. And it seems generally flaky. So I’ve spent the last week trying to evacuate the data with the thought that maybe I can re-initialize it and clear out some of the nasty stuff that’s built up over the last 5 years. Incidentally, while we all like to moan about how slow SATA disks are, try moving a few TB via a USB2 interface. The eSATA seems positively snappy after that.

Of course, QNAP released version 4.1.3 of their platform recently, and a lot of the symptoms I’ve been experiencing have stopped occurring. I’m going to continue down this path though, as I hadn’t experienced these problems on my other QNAP, and just don’t have a good feeling about the state of the filesystem. And you thought that I would be all analytical about it, didn’t you?

In any case, I’ve been running e2fsck on the filesytem fairly frequently, particularly when it goes read-only and I have to stop the services, unmount and remount the volume.

[/] # cd /share/MD0_DATA/
[/share/MD0_DATA] # cd Qmultimedia/
[/share/MD0_DATA/Qmultimedia] # mkdir temp
mkdir: Cannot create directory `temp': Read-only file system
[/share/MD0_DATA/Qmultimedia] # cd /
[/] # /etc/init.d/services.sh stop
Stop qpkg service: chmod: /share/MD0_DATA/.qpkg: Read-only file system
Shutting down Download Station: OK
Disable QUSBCam ...
Shutting down SlimServer...
Error: Cannot stop, SqueezeboxServer is not running.
WARNING: rc.ssods ERROR: script /opt/ssods4/etc/init.d/K20slimserver failed.
Stopping thttpd-ssods .. OK.
rm: cannot remove `/opt/ssods4/var/run/thttpd-ssods.pid': Read-only file system
WARNING: rc.ssods ERROR: script /opt/ssods4/etc/init.d/K21thttpd-ssods failed.
Shutting down QiTunesAir services: Done
Disable Optware/ipkg
.
Stop service: cloud3p.sh vpn_openvpn.sh vpn_pptp.sh ldap_server.sh antivirus.sh iso_mount.sh qbox.sh qsyncman.sh rsyslog.sh snmp lunportman.sh iscsitrgt.sh twonkymedia.sh init_iTune.sh ImRd.sh crond.sh nvrd.sh StartMediaService.sh bt_scheduler.sh btd.sh mysqld.sh recycled.sh Qthttpd.sh atalk.sh nfs ftp.sh smb.sh versiond.sh .
[/] # umount /dev/md0



So then I run e2fsck to check the filesystem. But on a large volume (in this case 8 and a bit TB), it uses a lot of RAM. And invariably runs out of swap space.

[/] # e2fsck /dev/md0
e2fsck 1.41.4 (27-Jan-2009)
/dev/md0: recovering journal
/dev/md0 contains a file system with errors, check forced.
Pass 1: Checking inodes, blocks, and sizes
Error allocating block bitmap (4): Memory allocation failed
e2fsck: aborted



So here’s what I did to enable some additional swap on a USB stick (courtesy of a QNAP forum post from RottUlf).

Insert a USB stick with more than 3GB of space. Create a swap file on it.

[/] # dd if=/dev/zero of=/share/external/sdi1/myswapfile bs=1M count=3072

Set it as a swap file.

[/] # mkswap /share/external/sdi1/myswapfile

Enable it as swap for the system.

[/] # swapon /share/external/sdi1/myswapfile

Check it.

[/] # cat /proc/swaps
Filename Type Size Used Priority
/dev/md8 partition 530040 8216 -1
/share/external/sdi1/myswapfile file 3145720 12560 -2

You should then be able to run e2fsck. Note that the example I linked to used e2fsck_64, but this isn’t available on the TS639 Pro II. Once you’ve fixed your filesystem issues, you’ll want to disable the swap file on the stick, remount the volume and restart your services.

[/] # swapoff /share/external/sdi1/myswapfile
[/] # mount /dev/md0
mount: can't find /dev/md0 in /etc/fstab or /etc/mtab

Oh no …

[/] # mount /dev/md0 /share/MD0_DATA/

Yeah, I don’t know what’s going on there either. I’ll report back in a while when I’ve wiped it and started again.





QNAP – Increase RAID rebuild times with mdadm

I recently upgraded some disks in my TS-412 NAS and it was taking some time. I vaguely recalled playing with min and max settings on the TS-639. Here’s a link to the QNAP forums on how to do it. The key is the min setting, and, as explained in the article, it really depends on how much you want to clobber the CPU. Keep in mind, also, that you can only do so much with a 3+1 RAID 5 configuration. I had my max set to 200000, and the min was set to 1000. As a result I was getting about 20MBs, and each disk was taking a little less than 24 hours to rebuild. I bumped up the min setting to 50000, and it’s now rebuilding at about 40MBs. The CPU is hanging at around 100%, but the NAS isn’t used that frequently.

To check your settings, use the following commands:

cat /proc/sys/dev/raid/speed_limit_max
cat /proc/sys/dev/raid/speed_limit_min

To increase the min setting, issue the following command:

echo 50000 >/proc/sys/dev/raid/speed_limit_min

And you’ll notice that, depending on the combination of disks, CPU and RAID configuration, your rebuild will go a wee bit faster than before.

QNAP – How to repair RAID brokenness – Redux

I did a post a little while ago (you can see it here) that covered using mdadm to repair a munted RAID config on a QNAP NAS. So I popped another disk recently, and took the opportunity to get some proper output. Ideally you’ll want to use the web interface on the QNAP to do this type of thing but sometimes it no worky. So here you go.

Stop everything on the box.

[~] # /etc/init.d/services.sh stop
Stop service: recycled.sh mysqld.sh atalk.sh ftp.sh bt_scheduler.sh btd.sh ImRd.sh init_iTune.sh twonkymedia.sh Qthttpd.sh crond.sh nfs smb.sh lunportman.sh iscsitrgt.sh nvrd.sh snmp rsyslog.sh qsyncman.sh iso_mount.sh antivirus.sh .
Stop qpkg service: Disable Optware/ipkg
Shutting down SlimServer...
Stopping SqueezeboxServer 7.5.1-30836 (please wait) .... OK.
Stopping thttpd-ssods .. OK.
/etc/rcK.d/QK107Symform: line 48: /share/MD0_DATA/.qpkg/Symform/Symform.sh: No such file or directory

(By the way it really annoys me when I’ve asked software to remove itself and it doesn’t cleanly uninstall – I’m looking at you Symform plugin)

Unmount the volume

[~] # umount /dev/md0

Stop the array

[~] # mdadm -S /dev/md0
mdadm: stopped /dev/md0

Reassemble the volume

[~] # mdadm --assemble /dev/md0 /dev/sda3 /dev/sdb3 /dev/sdc3 /dev/sdd3 /dev/sde3 /dev/sdf3
mdadm: /dev/md0 has been started with 5 drives (out of 6).

Wait, wha? What about that other disk that I think is okay?

[~] # mdadm --detail /dev/md0
/dev/md0:
Version : 00.90.03
Creation Time : Fri May 22 21:05:28 2009
Raid Level : raid5
Array Size : 9759728000 (9307.60 GiB 9993.96 GB)
Used Dev Size : 1951945600 (1861.52 GiB 1998.79 GB)
Raid Devices : 6
Total Devices : 5
Preferred Minor : 0
Persistence : Superblock is persistent
Update Time : Wed Dec 14 19:09:25 2011
State : clean, degraded
Active Devices : 5
Working Devices : 5
Failed Devices : 0
Spare Devices : 0
Layout : left-symmetric
Chunk Size : 64K
UUID : 7c440c84:4b9110fe:dd7a3127:178f0e97
Events : 0.4311172
Number Major Minor RaidDevice State
0 8 3 0 active sync /dev/sda3
1 0 0 1 removed
2 8 35 2 active sync /dev/sdc3
3 8 51 3 active sync /dev/sdd3
4 8 67 4 active sync /dev/sde3
5 8 83 5 active sync /dev/sdf3

Or in other words

[~] # cat /proc/mdstat
Personalities : [linear] [raid0] [raid1] [raid10] [raid6] [raid5] [raid4] [multipath]
md0 : active raid5 sda3[0] sdf3[5] sde3[4] sdd3[3] sdc3[2]
9759728000 blocks level 5, 64k chunk, algorithm 2 [6/5] [U_UUUU]
md6 : active raid1 sdf2[2](S) sde2[3](S) sdd2[4](S) sdc2[1] sda2[0]
530048 blocks [2/2] [UU]
md13 : active raid1 sdb4[2] sdc4[0] sdf4[5] sde4[4] sdd4[3] sda4[1]
458880 blocks [6/6] [UUUUUU]
bitmap: 0/57 pages [0KB], 4KB chunk
md9 : active raid1 sdf1[1] sda1[0] sdc1[4] sdd1[3] sde1[2]
530048 blocks [6/5] [UUUUU_]
bitmap: 34/65 pages [136KB], 4KB chunk
unused devices: <none>

So, when you see [U_UUUU] you’ve got a disk missing, but you knew that already. You can add it back in to the array thusly.

[~] # mdadm --add /dev/md0 /dev/sdb3
mdadm: re-added /dev/sdb3

So let’s check on the progress.

[~] # cat /proc/mdstat
Personalities : [linear] [raid0] [raid1] [raid10] [raid6] [raid5] [raid4] [multipath]
md0 : active raid5 sdb3[6] sda3[0] sdf3[5] sde3[4] sdd3[3] sdc3[2]
9759728000 blocks level 5, 64k chunk, algorithm 2 [6/5] [U_UUUU]
[>....................] recovery = 0.0% (355744/1951945600) finish=731.4min speed=44468K/sec
md6 : active raid1 sdf2[2](S) sde2[3](S) sdd2[4](S) sdc2[1] sda2[0]
530048 blocks [2/2] [UU]
md13 : active raid1 sdb4[2] sdc4[0] sdf4[5] sde4[4] sdd4[3] sda4[1]
458880 blocks [6/6] [UUUUUU]
bitmap: 0/57 pages [0KB], 4KB chunk
md9 : active raid1 sdf1[1] sda1[0] sdc1[4] sdd1[3] sde1[2]
530048 blocks [6/5] [UUUUU_]
bitmap: 34/65 pages [136KB], 4KB chunk
unused devices: <none>
[~] #

And it will rebuild. Hopefully. Unless the disk is really truly dead. You should probably order yourself a spare in any case.

QNAP – How to repair RAID brokenness

I use a QNAP 639 Pro NAS at home to store my movies on. It’s a good unit and overall I’ve found it to be relatively trouble-free. I was recently upgrading the disks in the RAID set from 1TB to 2TB drives and it was going swimmingly. But then I heard a beep while the RAID was rebuilding disk 5 of 6 in the set. And I started to get some concerned e-mails from the NAS.

Server Name: qnap639
 IP Address: 256.256.256.256
 Date/Time: 2011/06/09 16:27:33
 Level:  Error
 [RAID5 Disk Volume: Drive 1 2 3 4 5 6] Error occurred while accessing Drive 3.

Server Name: qnap639
 IP Address: 256.256.256.256
 Date/Time: 2011/06/09 16:27:40
 Level:  Error
 [RAID5 Disk Volume: Drive 1 2 3 4 5 6] Error occurred while accessing the devices of the volume in degraded mode.

Server Name: qnap639
 IP Address: 256.256.256.256
 Date/Time: 2011/06/09 16:29:32
 Level:  Warning
 [RAID5 Disk Volume: Drive 1 2 3 4 5 6] Mount the file system read-only.

Server Name: qnap639
 IP Address: 256.256.256.256
 Date/Time: 2011/06/09 16:31:41
 Level:  Warning
 [RAID5 Disk Volume: Drive 1 2 3 4 5 6] Rebuilding skipped.

Basically, it looks like the NAS thought one of the disks had popped. You can see this thing all over the QNAP forums – here‘s a good example – and it’s usually because of incompatibility between the QNAP firmware and various green hard disks. but I’d checked that my disks were on the Official QNAP HCL, and, well, that couldn’t be it. So I rebooted a bunch of times and ran S.M.A.R.T. scans on the allegedly failed disk. I pulled it out and erased it on an XP box and put it back in. The NAS wanted no part of it though. So it was time to get dirty with mdadm.

Firstly, make sure there’s nothing going on on the NAS, stop the running services and unmount the RAID device.

/etc/init.d/services.sh stop
umount /dev/md0

Once the volume’s unmounted you can stop the volume.

mdadm -S /dev/md0

Now for the bit where you hold your breath for a while – the reassembly of the volume with the components you want.

mdadm --assemble /dev/md0 /dev/sda3 /dev/sdb3 /dev/sdc3 /dev/sdd3 /dev/sde3 /dev/sdf3

To see the progress, you can access a couple fo different commands.

mdadm --detail /dev/md0
cat /proc/mdstat

Once that’s complete, it’s best to run a filesystem check.

e2fsck -f /dev/md0

If there’re no errors, mount the volume and check that your stuff is still there.

mount /dev/md0 /share/MD0_DATA

I then rebooted and confirmed that everything started up correctly and my data was still there. But when I added the 6th drive, I got an error about a missing superblock and there didn’t seem to be any mdadm magic that would solve this problem. So like I good admin I rebooted, and the NAS started rebuilding the volume with the 6th disk. Now if I can only fix the problem where smbd kills the CPU and disconnects guests from the share we’ll be gold.

New Article added to the Articles page

I have added a new article to the articles page. It is imaginatively titled “qnap ts639 pro turbo nas firmware update procedure“. It covers the update process required to update the QNAP TS639 Pro Turbo NAS firmware. I promise I’ll actually write something of substance in the near future …
